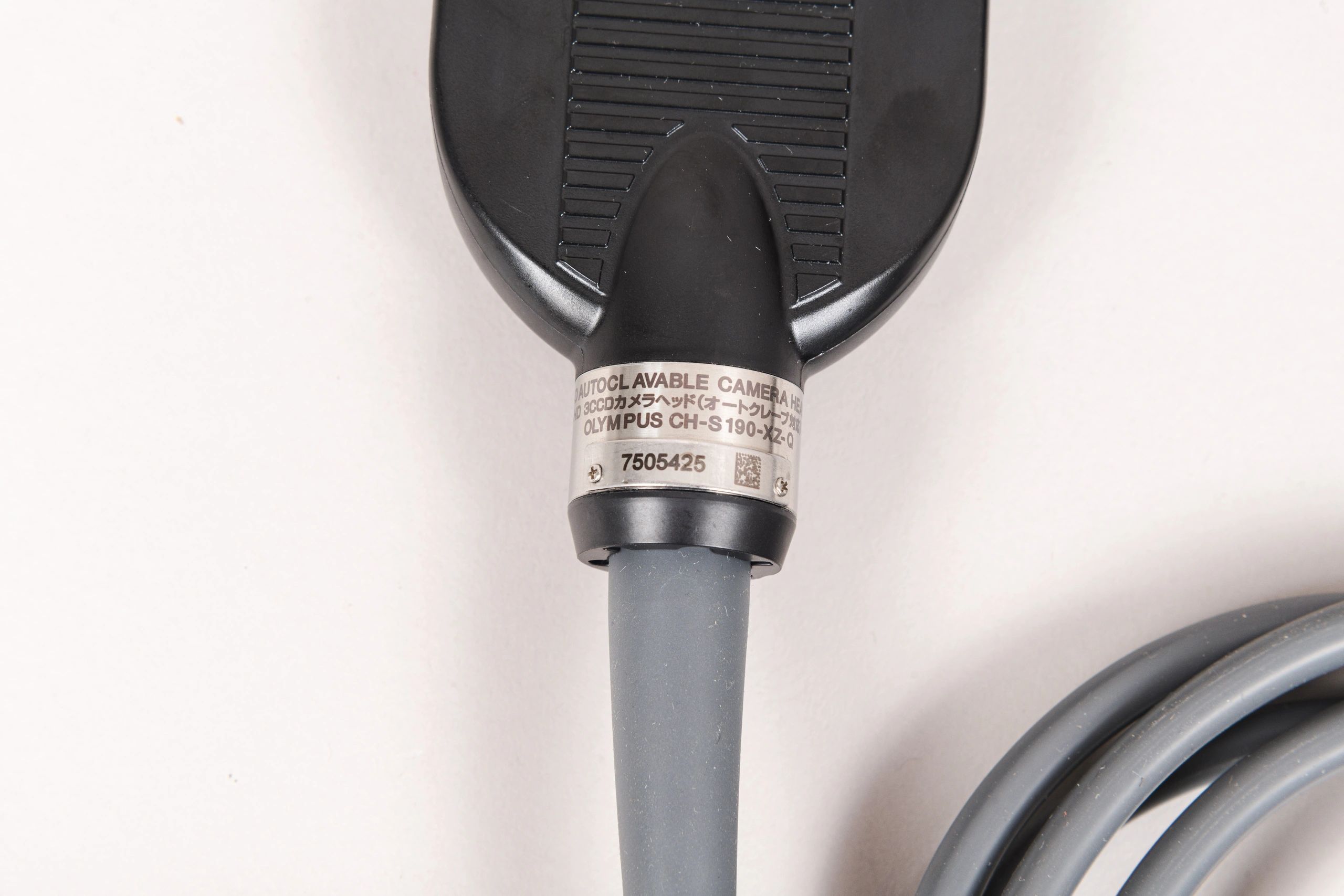

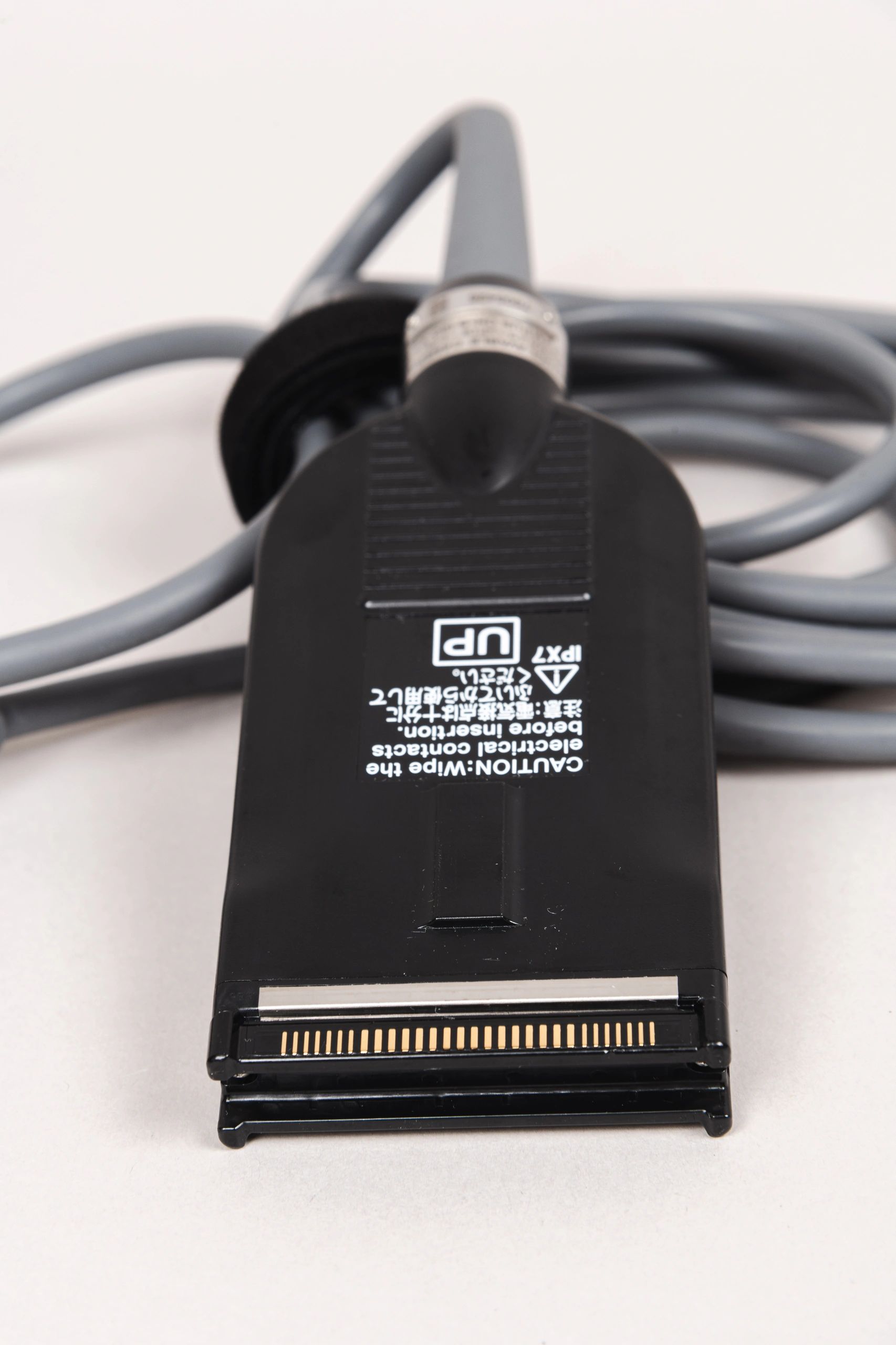

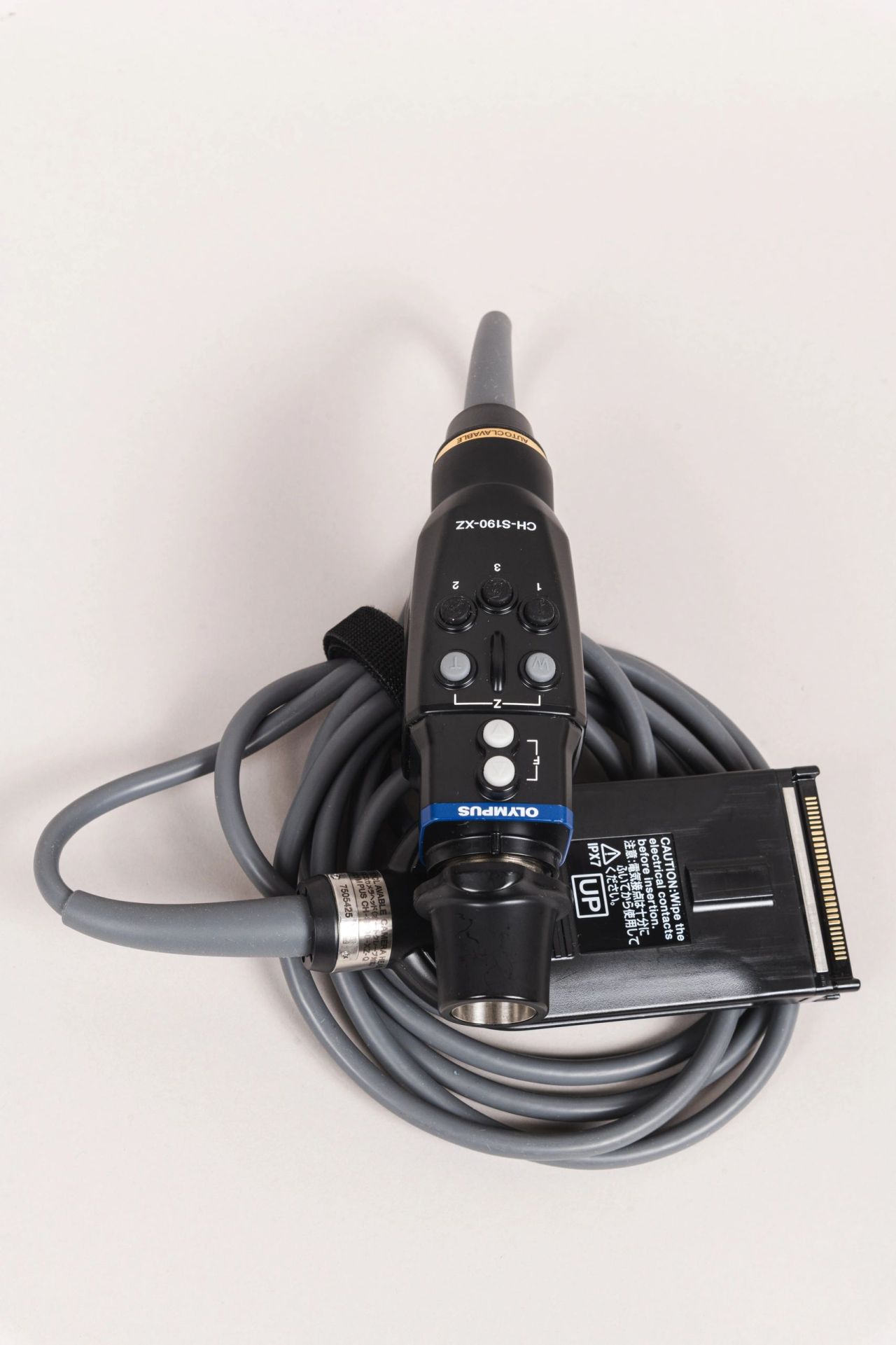

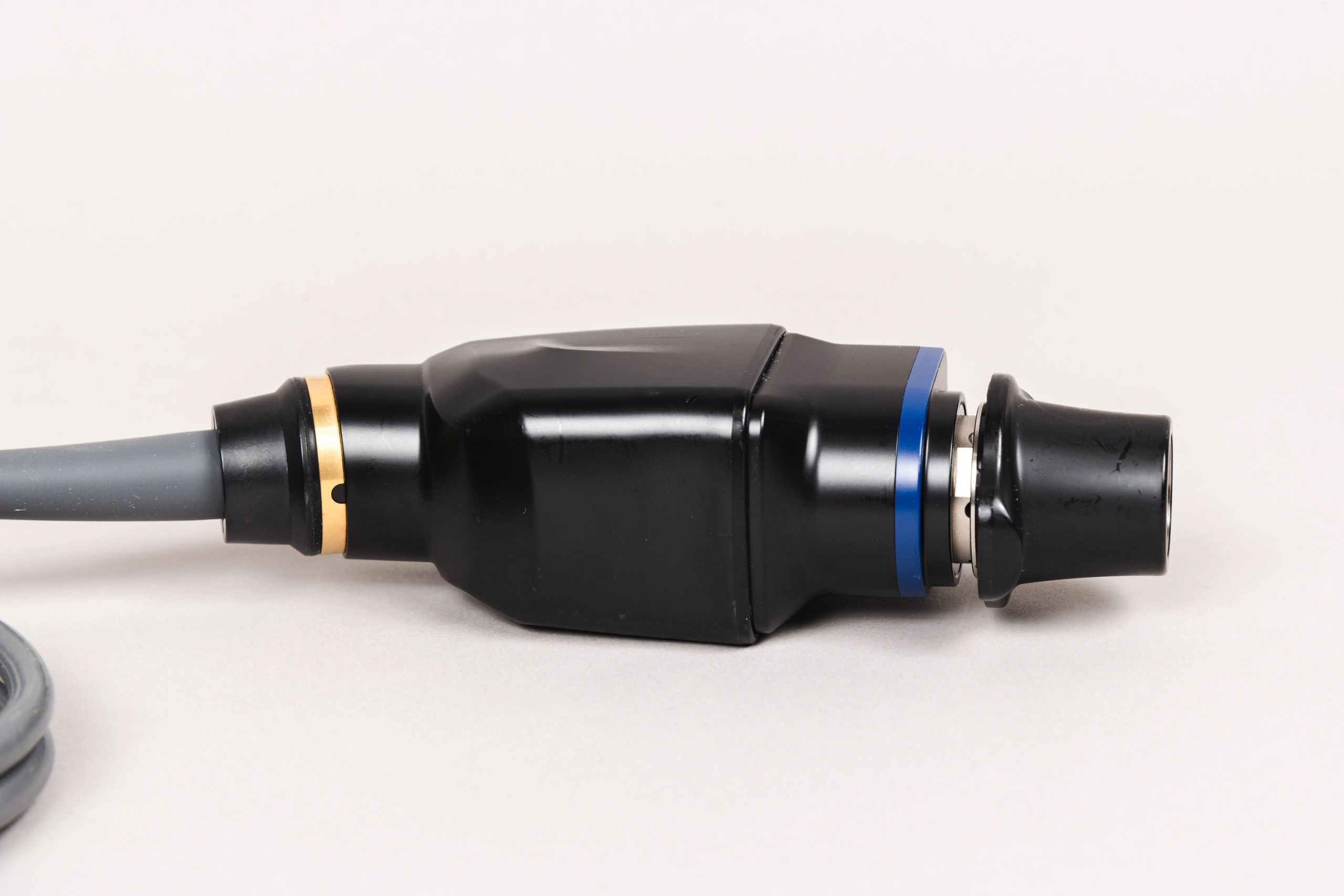

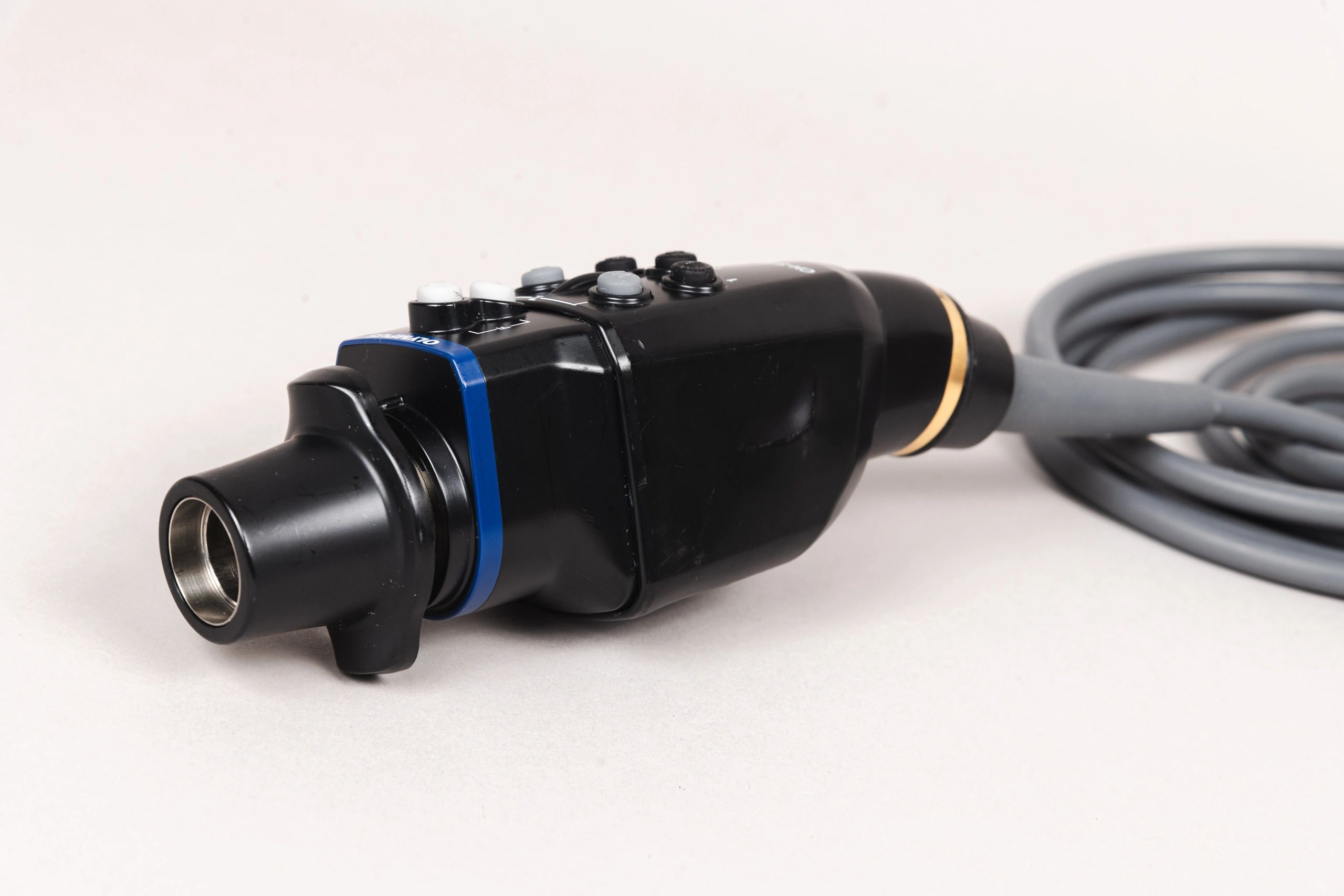

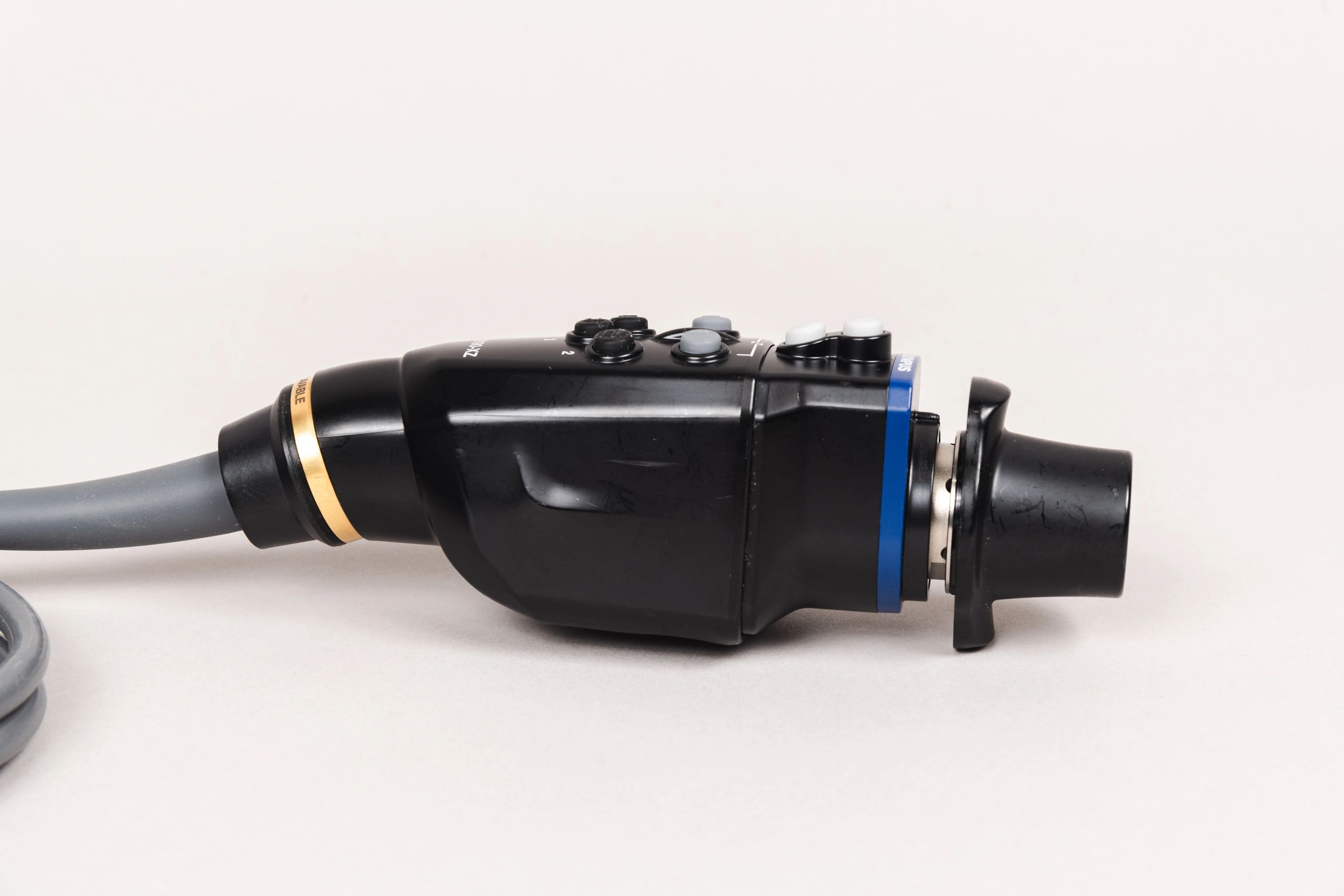

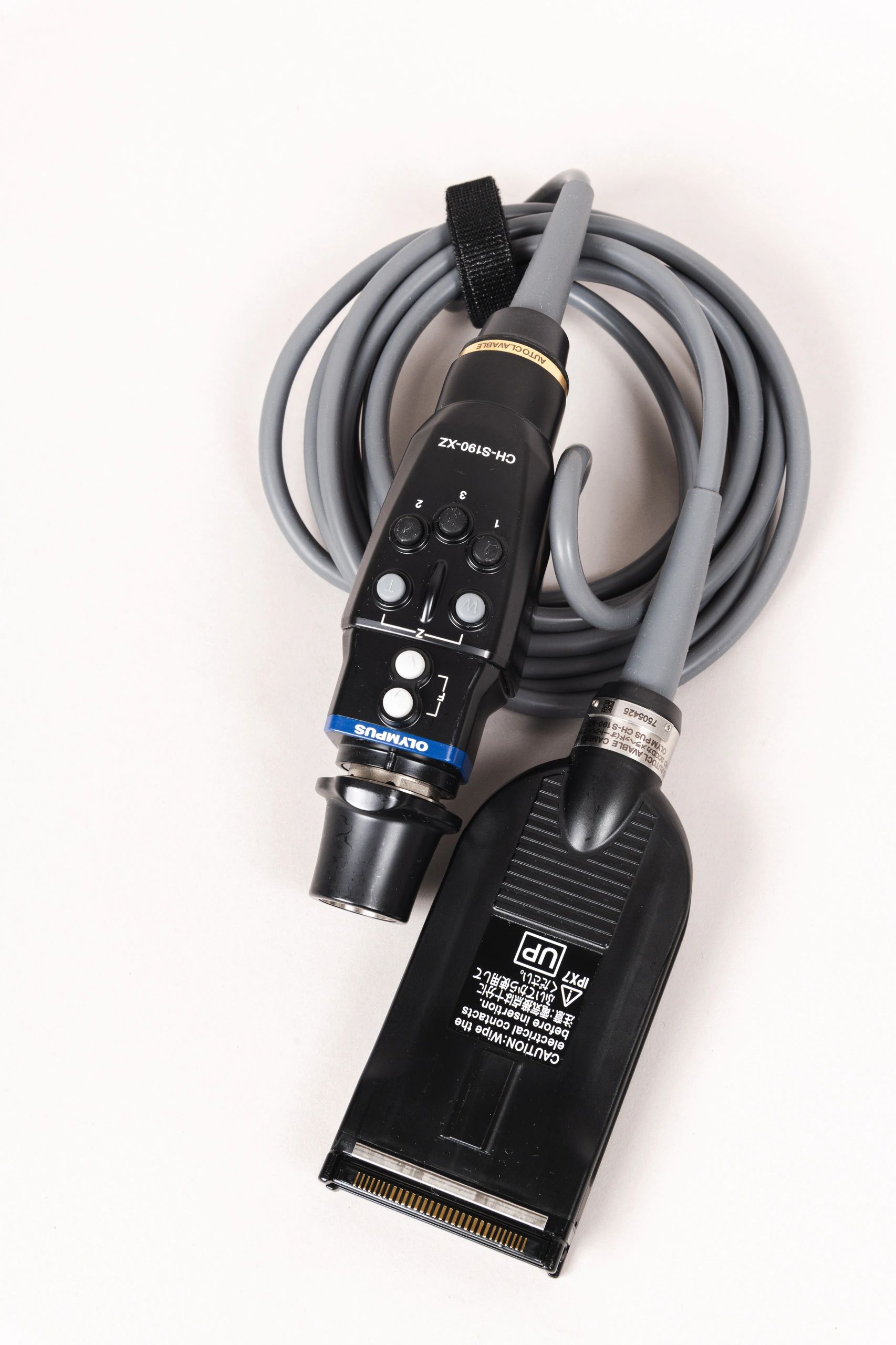

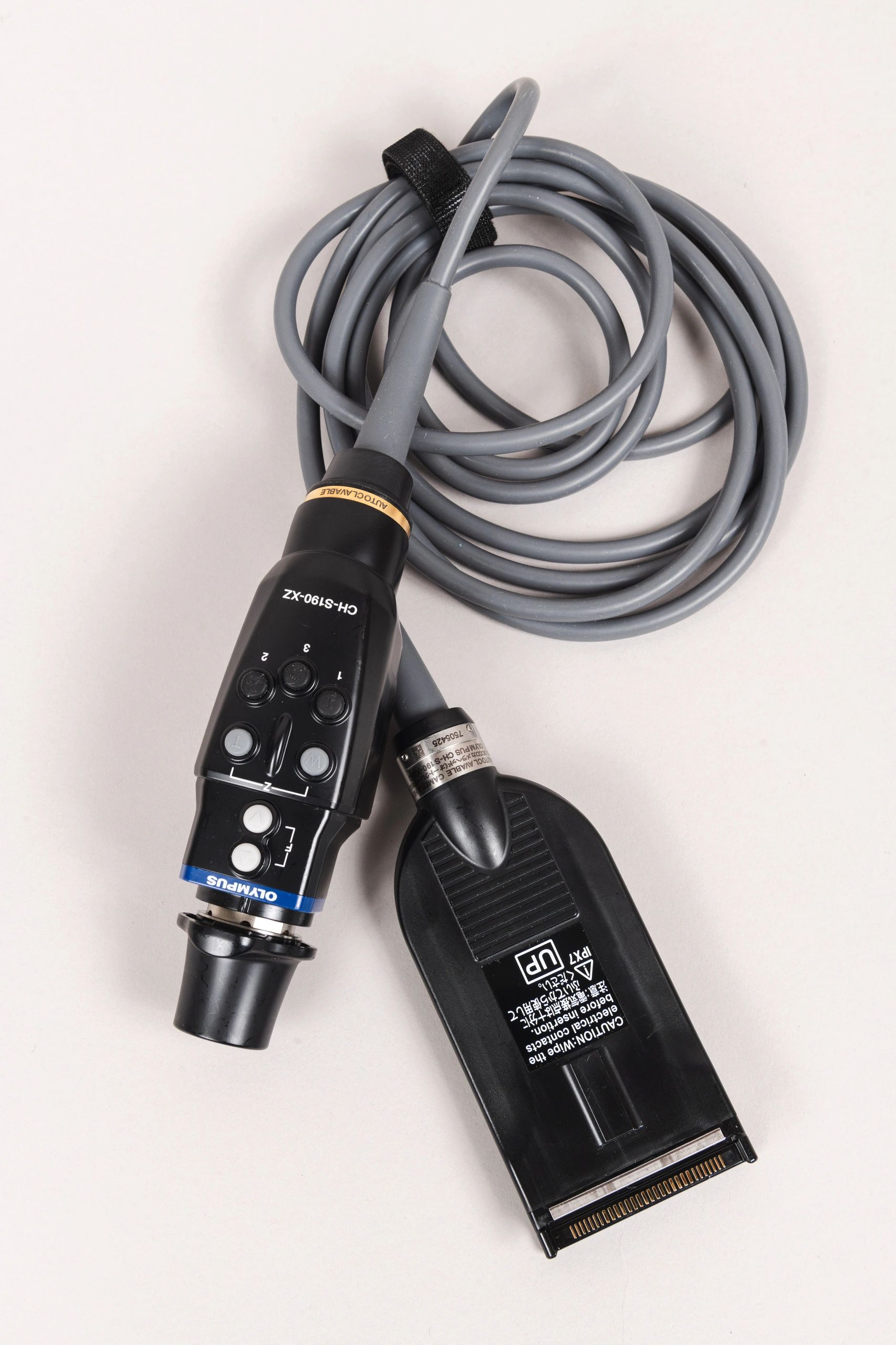

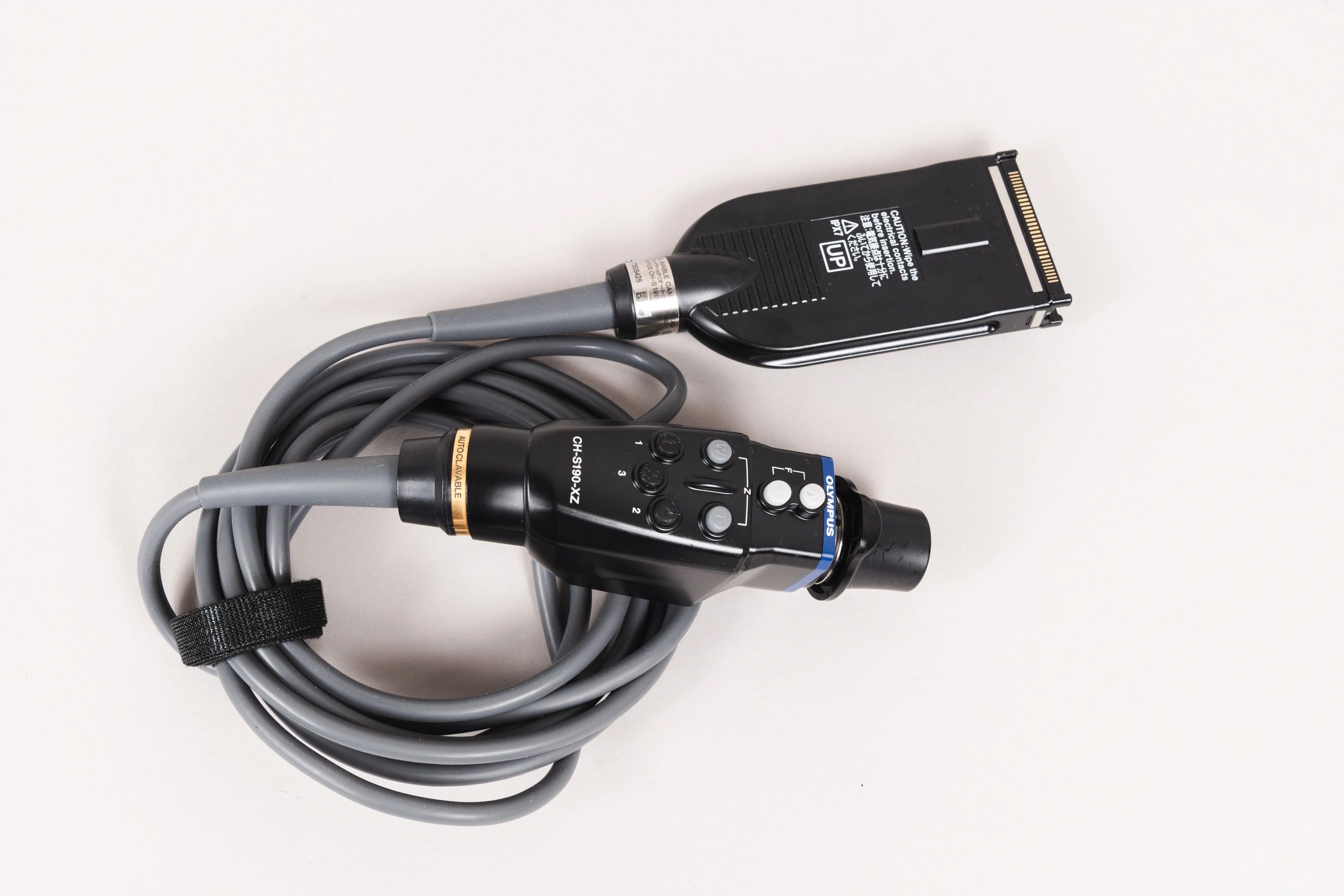

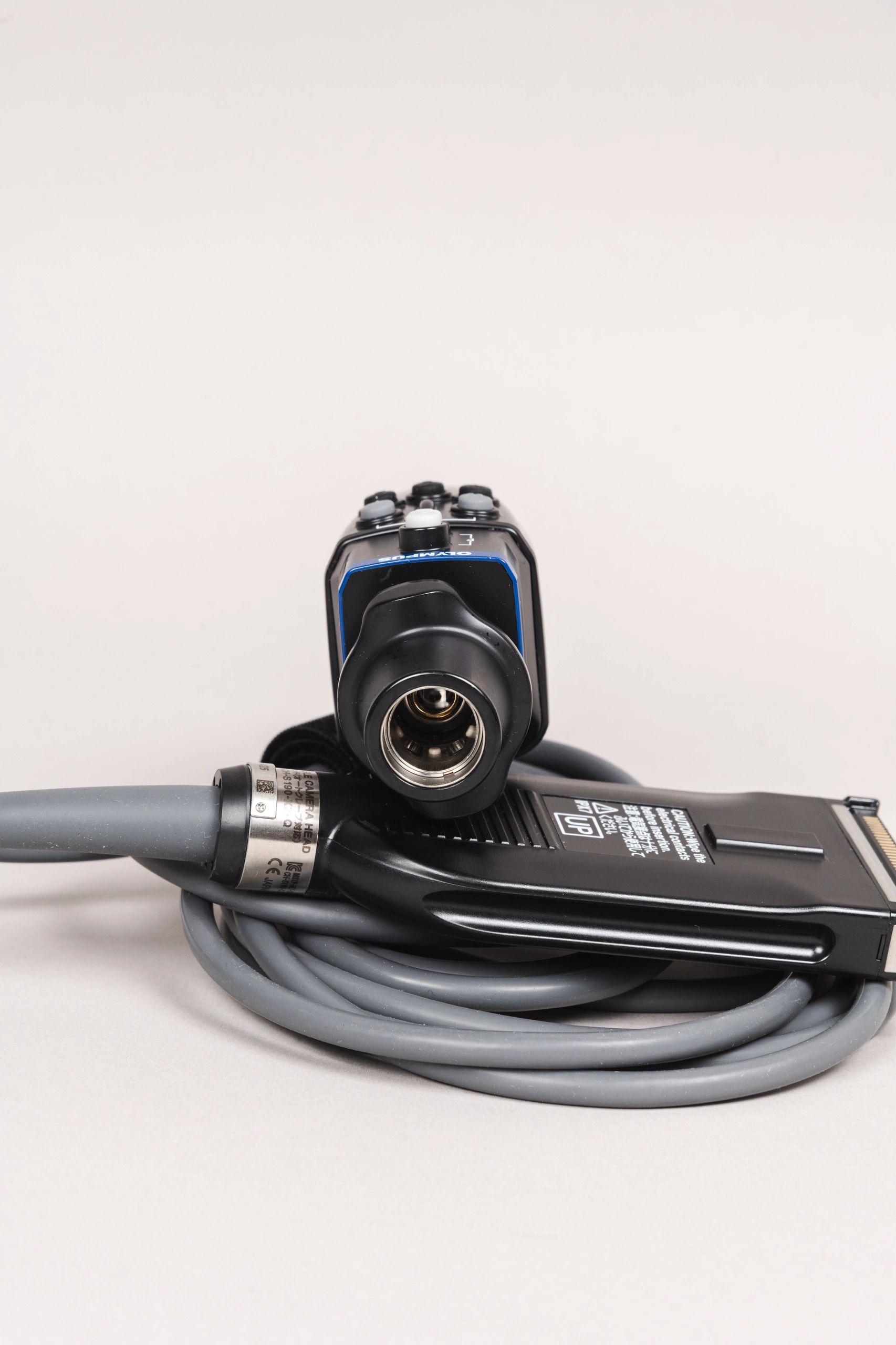

The Olympus CH-S190-XZ-Q is a 3CCD high-definition camera head used to capture endoscopic video during minimally invasive procedures, featuring remote-controlled power zoom and focus and Narrow Band Imaging (NBI).
Key Details
- 3CCD HD camera head
- Power zoom and focus: motor-driven, remote-controlled 0.9-1.8x zoom and remote-controlled focusing, operable one-handed from the camera head
- Narrow Band Imaging (NBI): Olympus proprietary optical imaging that enhances visualization of vessels and mucosal-surface tissues, 20% brighter than previous models
- Pickup system: 0.85 cm (0.33 in) solid-state image pickup
- Magnification: focal distance f = 15.8-31.3 mm
- Size: 45 x 58 x 161 mm
- Weight: 350 g
